ENGINE BLOCK

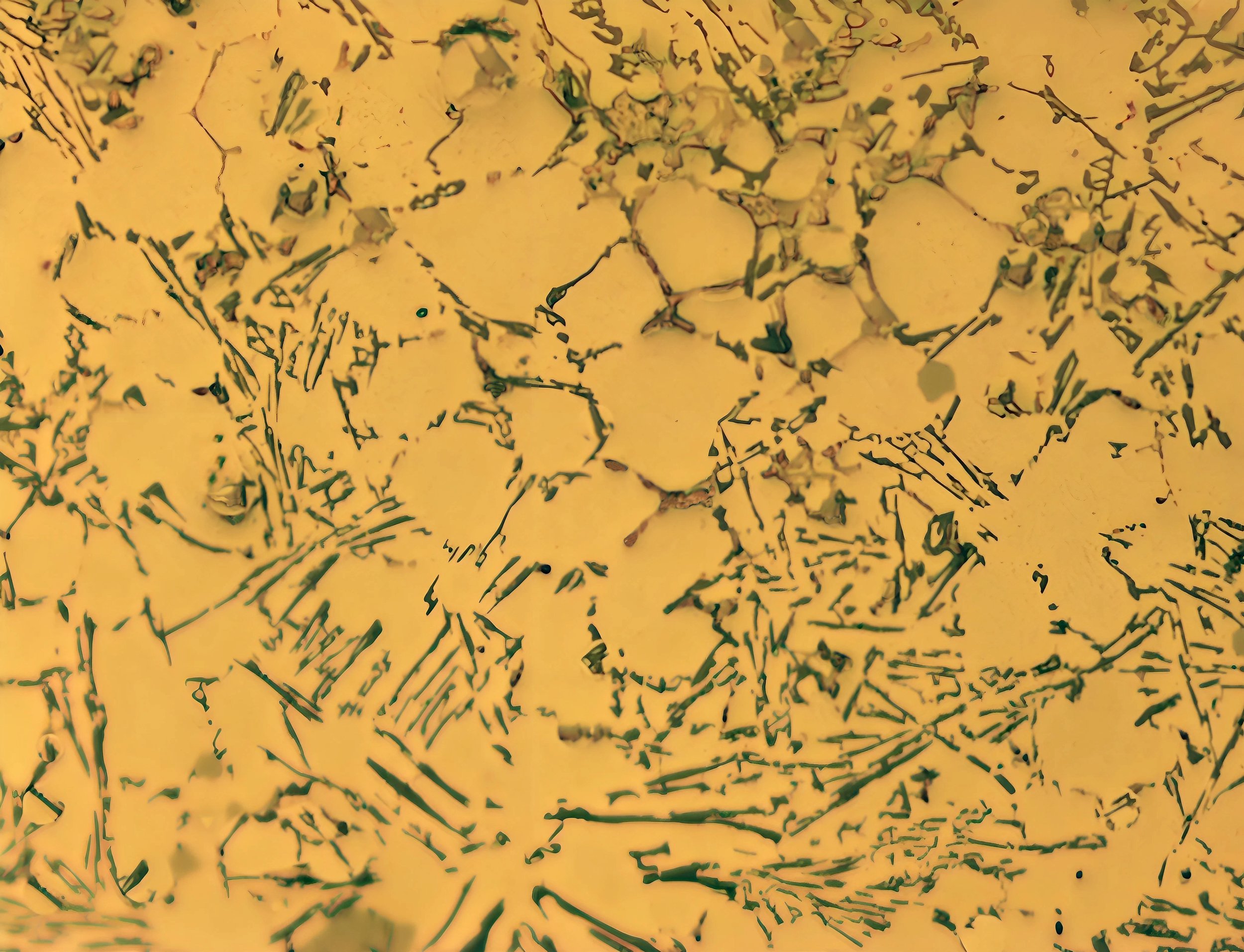

This micrograph reveals the cast aluminum-silicon alloy used in the engine block, away from the piston cylinders. The orange-colored ma-trix represents aluminum grains, while fine silicate structures—appearing like necklaces—decorate their boundaries. These silicates strengthen the material at the grain edges, improving resistance to thermal fatigue and mechanical stress. The uniform distribution of phases makes this alloy ideal for structural regions of the engine where durability is essential.
Clay Yester MAG. 1000x
This digital download features a high-resolution image suitable for large-scale printing through your preferred commercial printer. For personal use only; no commercial license is included.
